HUILONG 10 Wires Hinge Joint Field Fence, 330 ft Length, 47 inch
Height
Hinged field fences are the most commonly used type with economic
benefits. Different forms of weaving are used to wrap horizontal
lines with vertical lines at each intersection to form hinge
joints. This spring-shaped knot will provide maximum elasticity to
absorb the most violent impact energy and spring back into its
original shape. The hinge joint allows the necessary flexibility to
move without breaking the wire when the pressure is placed on the
stock over the fence.
A hinged joint fence, often referred to as a farm fence, has four
wrapped hinge joints where two vertical draws are wound together to
form a hinge joint. The knot acts like a hinge, contracting under
pressure and then bouncing back into shape. This provides easy
installation as the hinge "gives" while retaining the full height
for continued protection and good appearance. Vertical wires are
individually cut and wrapped for maximum strength and flexibility.
SPECIFICATIONS
| No | The specification of Hinge Joint Field Fence | Gross Weight | Top and Bottom Wire Dia. | Inner Wire Dia. |
| Type | Specifications(the incremental vertical hole sizes) | kg | mm | mm |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.5 | 2 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2 |
| 7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26 | 2.5 | 2 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2 |
Material:Hot dip galvanized wire,Zinc
Coating of 40-50g/m², Zinc coating more than 200g/m² |
TIPS:1. The first data in type is the No.of line wire; The second
data is horizontal hole size(mm); The third data is the height of
the fence(mm); The fourth data is the total length for each
roll(m).
2. Other sizes also available. |
| Material | Low carbon steel wire,galvanized iron wire |
| Inner wire diameter | 1.8-2.5mm |
| Edge wire diameter | 1.9-3.5mm |
| Surface treatment | Galvanized & hot-dipped & pvc coated |
| Height | 0.8m,1.0m,1.2m,1.5m,1.7m,2.0m,2.3m,2.6m, |
| Length | 10-200m |
| Applications | Used for borders in field and grassland for breeding of
deer,cattle,etc |
| Characteristics | Corrosion resistance.high tensile strength wire,firm structure,etc |
| Packing | Packed by plastic film,in wooden pallet,in bulk |
DIFFERENT STYPE OF THE PRODUCT

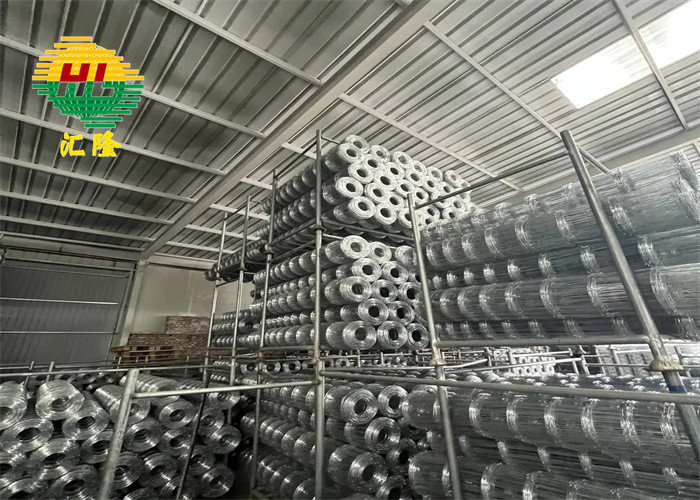

PACKAGING DETAILS
1) Nuded Packing, with label inside.
2) Plastic film only, with label inside.
3) Plastic Shrink only, with label inside.
4) Plastic woven bag, with label inside.
5) Wooden Pallet or Iron Pallet: special design to ensure the belts
stable.

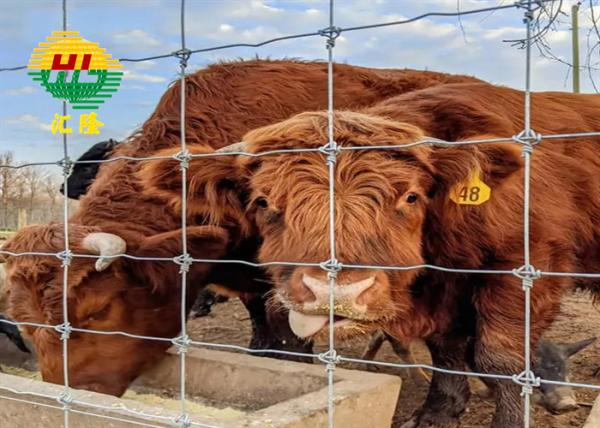

APPLICATIONS
1) Protect your investment with our most reliable limits for
cattle, pigs and other large animals.
2) can withstand the needs of large fauna
3) suitable for all terrain, as well as herds and pastures
4) special wire coil can withstand the worst weather, allowing the
fence to expand and shrink
5) galvanized wires resistant to weathering and wear
RELATED PRODUCTS
1) T Post
T Post is matched and used with Hinge Joint Wire Mesh Fence, which
has a steel plate on the top of the post for easier installation.
2) T Post Clip
T Post Clips allow you to easily secure the rolled Hinge Joint Wire
Mesh Fence to the T-post tightly.
3) Y Post
Y Post is widely used as post for Farm Fences.
4) Post Driver
Post Driver can be used to help drill the post into ground more
easily.
FREQUENTLY ASKED QUESTIONS
Q1: Is High Tensile Hinged Joint Knot Fence Different to erect?
While High Tensile Hinged joint knot fencing certainly requires
different techniques to erect than mild steel, it is no more
difficult. Most farms have access to a post driver that can easily
drive in strainers to the required depth. Bending and tying off is
simple when using the correct technique.
Q2: Isn’t High Tensile Hinged Joint Knot Fence Expensive?
It is a common misconception that a mild steel hinged joint knot
fence will cost less than High Tensile. High Tensile mesh rolls may
be more expensive to buy, but this is more than compensated for by
the reduced numbers of posts and labour required.
Although HT8/80/15 is the most common spec used for livestock, we
also offer a wide variety of specifications to suit different
animals and applications. Please contact one of our fencing experts
who are on hand to provide you with professional support and
advice.
Q3: Are you a factory or trading company?
We are a 18-year factory and we have registered trading company for
sourcing more valuable products for the customers. Therefore, we
have both the advantages of factory and trading company. We have
our own factory, so we can control the product quality timely and
efficiently. At the same time, we also have a professional
international trade team, providing good and professional services
for customers.
Q4: Can you offer samples?
Yes, free sample is available according to your request. And we can
also ensure that the quality of the sample is the same as that of
the mass products.
Q5: How about the payment terms?
T/T (30% deposit in advance) , L/C at sight.
Q6: How about the delivery time?
Within 7-15 days after receiving customer’s deposit or L/C.
